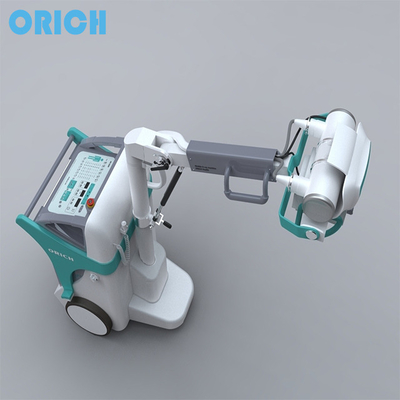

Orthopedic Fluoroscopy Machine High Quality Mobile X-Ray Which Don't Need X-ray Room

Technical data of fluoroscopy X-ray system

Item No: DF-110A

Standard Configuration

No

Item

Technology Parameter

Description

1

Generator

Tube current

manual: 0.2~3mA

High voltage,satisfies abdomen and special fluoroscopy. Configure conveniently, and leave interface for optional work station.

automatic: 0.8±0.2mA

Tube voltage

manual: 40~120KV

automatic: 40~120KV

Power: AC 220V

Fluoroscopy way: manual and automatic(IBS)

2

X-ray tube(Orich)

Focus: 0.8mm

High kV, small focus effectively improves image resolution response Separate tube meets long time group examination.

3

Image system

9" image intensifier

Gray scale grade: 8

Eight-frame image storage, can display and compare the saved images in the same screen at the same time. Achieve image acquirement, storage, back-load image, mirror image, comparison image etc. Movement detection which combines with image intensification minimizes image dynamic artifact. Dual video output, excellent image revivification revert to image dynamic range, brightness and contrast.

Resolution: min 1.2LP/mm

Denoise: 8

Storage: 8 amplitude memory, comparison image

CCD camera

pixel: 40 0000

Monitor

scan-line: horizontal:800, vertical:400

4

Diagnostic stand

Horizontal moving range: 260mm

high quality -price rate.

X-ray tube vertical moving range: 870~1730mm

Rotating range: -45°~+45°

5

Collimator

Item No: DS-1

operate conveniently.
